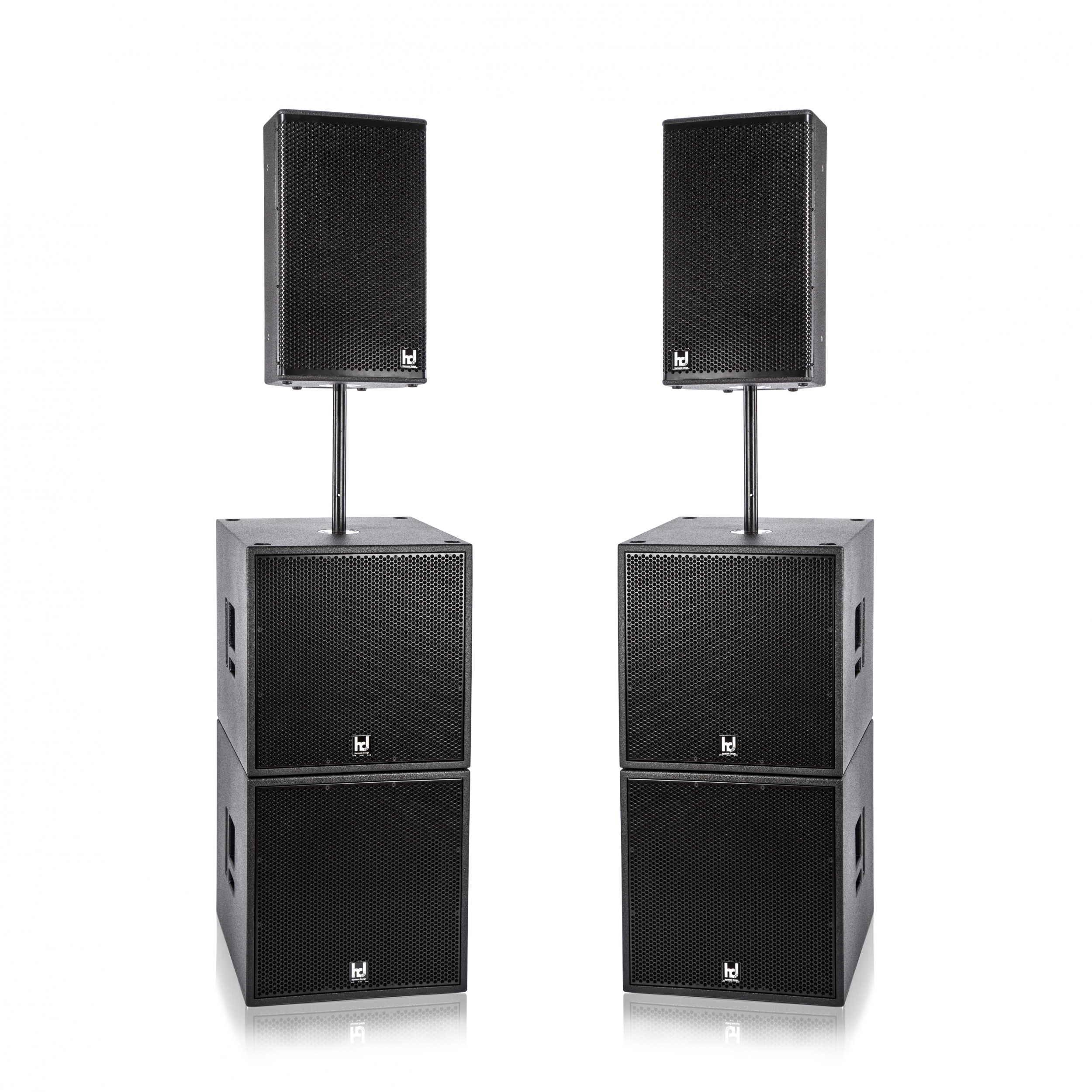

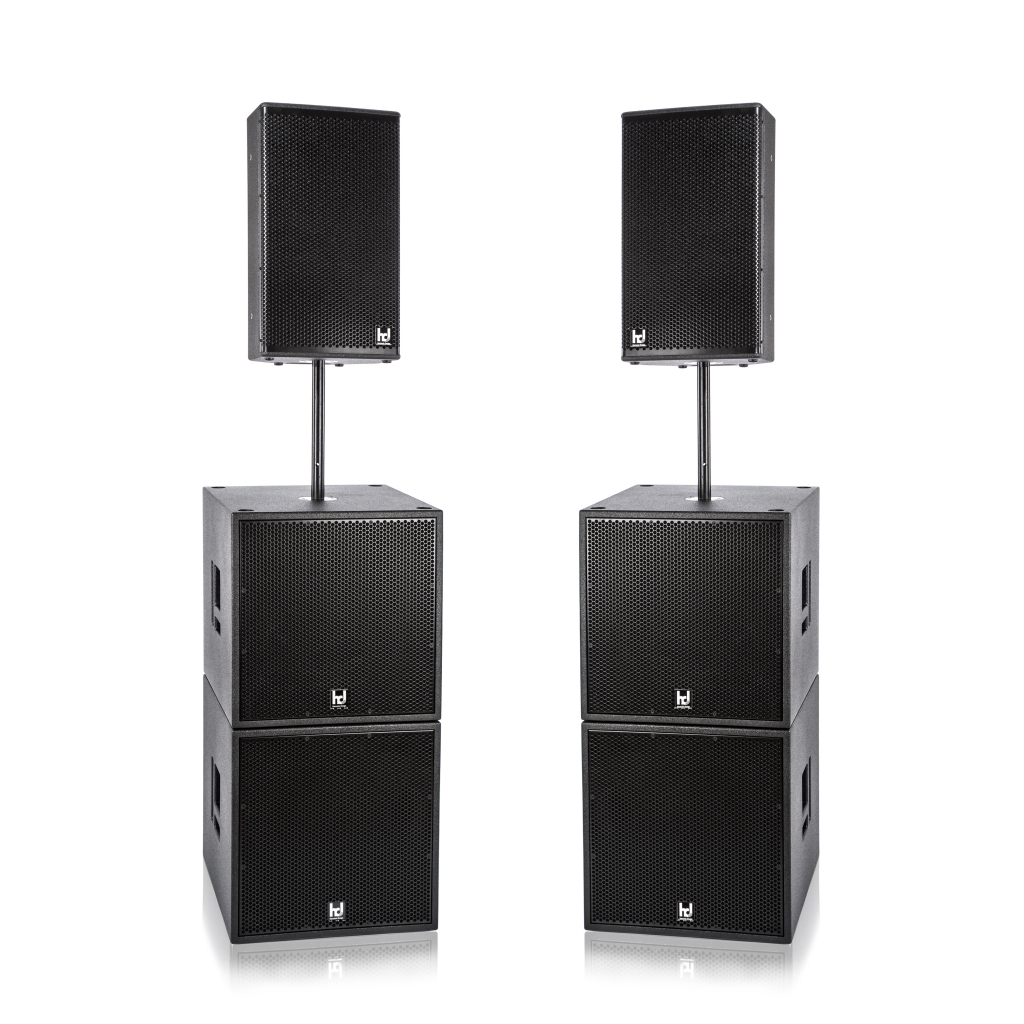

hd MP12N/P18-PA2

The mobile hd MP12N/P18-PA2 multifunctional PA system combines first-class sound quality with a compact design, minimal dimensions, and low weight. The hd MP12N tops in roadworthy enclosures are coated with a scratch-resistant polyurethane finish. Weighing only 18 kg, the speaker is easy to transport thanks to its milled, ergonomically shaped handles. Two M8 inlet threads on each side, as well as top and a 35 mm pole flange offer options for all applications. The specially developed loudspeaker components with ferrite magnet systems guarantee optimum heat dissipation with minimal power compression. In conjunction with a careful tuning that leads to a high power handling capacity and exceptional longevity of the speaker.

Das natürliche, unverfälschte Klangbild macht sich bei Naturinstrumenten und Gesang besonders bemerkbar und es kommen mit vier 18“ Subwoofern auch Drums und E-Bass druckvoll beim Zuhörer an. The tweeter driver of the hd MP12N works on a large, rotatable horn with a particularly low crossover frequency for high directivity and controlled dispersion in the speech range. The different horn variants enable horizontal and vertical operating modes individually or in a cluster with selectable beam angles of 90° x 60° and 60° x 40°. As a result, even the “upper mids” benefit from a directional radiation and wider throw range. At close distance, it makes itself felt through the “in-your-face” sound.

The acoustic and mechanical design provides a coherent and interference-free, balanced reproduction of different music styles and sounds on every standard power amplifier, without the need for additional DSP corrections. The reproduction of transients and the depiction of an extreme spatial depth of effects is extraordinary. The special SuperVentedDesign in combination with an extended voice coil and the latest neodym magnet geometry enable a dynamic and broadband playback as a full-range speaker in an extremely compact size. For applications with additional subwoofer support, the hd MP series fits seamlessly into the Harmonic Design system concept. The rounded, asymmetrical enclosure is made of high-strength multiplex wood and provided with a polyurethane coating that protects against weather influences. The integrated 35 mm flange allows use on a tripod as a front system, and two field-tested monitor angles of 32 ° and 45 ° enable discreet and loud monitor applications. Three Speakon sockets ensure unobtrusive and kink-free cable routing. On the top there is an ergonomic carrying handle. An extensive range of accessories enables a wide variety of cost and time-saving applications and offers the greatest possible flexibility for daily changing public address tasks.

The MP12N/P18-PA2 is ideal for voice and music amplification in halls, tents, and clubs. The system includes the DSP-controlled active system bass hd P18, which drives the hd MP12N mid-high speakers and the hd Sub18 and thus acts as the basic building block. The powerful 18″ long-excursion loudspeaker in bass reflex tuning ensures controlled, punchy bass. An additional DSP AUX output channel can be used for active monitors or delay lines. Factory-programmed sound presets make it easier for you to work in a wide variety of rooms and applications. The easy handling and the compact dimensions save setup time, weight and load space. In addition, the Plug & Play system minimizes cabling and thus potential sources of error.
