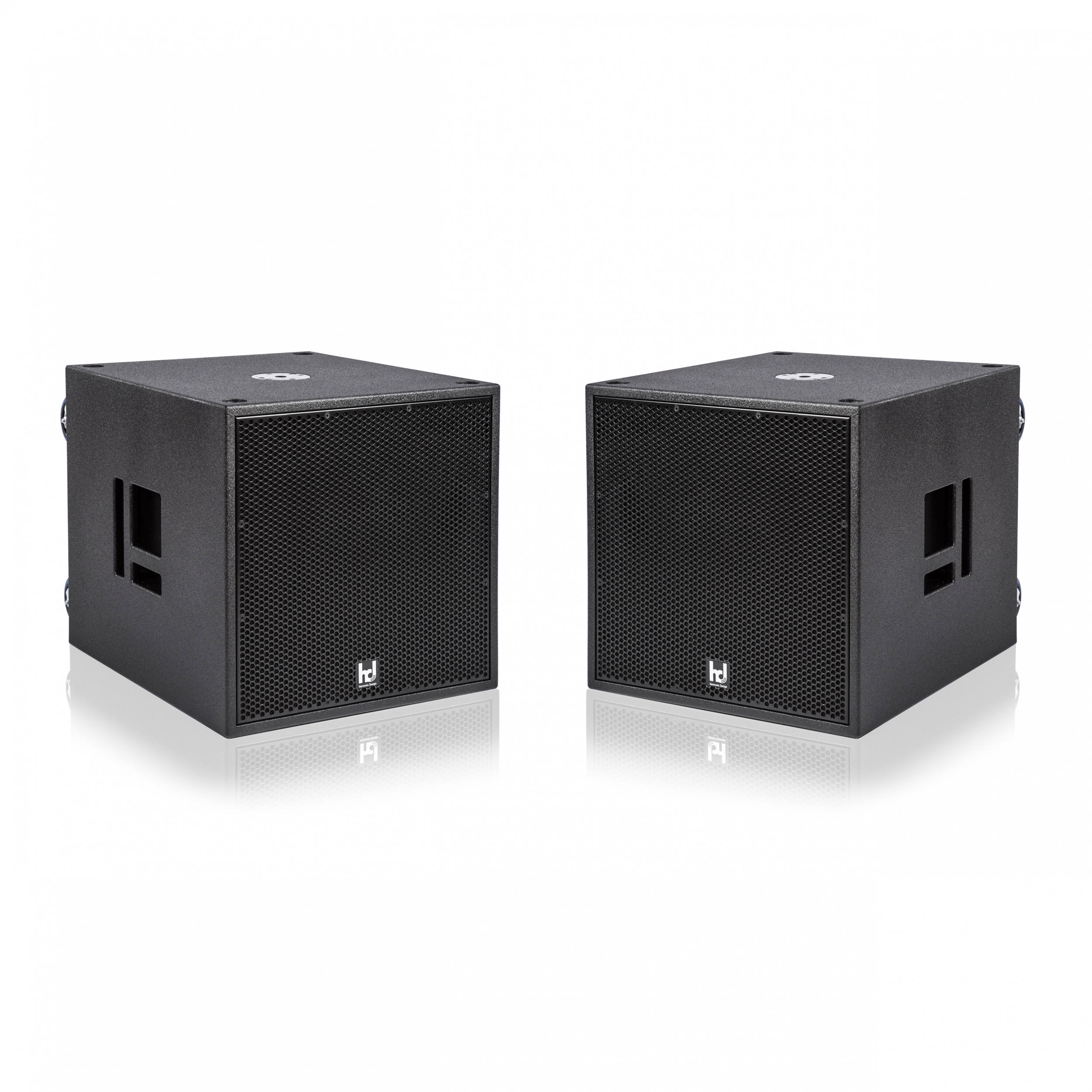

hd Sub18

Subwoofer

  • 1x 18“N high performance subwoofer 1800 W / 7200 W
  • transmission range from 35 Hz
  • compact and lightweight
  • SPLmax 141 dB
  • installation version without handles / M20 thread available
The hd Sub18 is a compact, easy to carry and powerful subwoofer in bass reflex tuning. The specially developed 18″ long excursion chassis with 5″ voice coil on fiberglass carrier and neodymium magnet system allows a linear excursion of 30 mm. Through a ventilation at the pole piece and at the spider the heat development of the coil is optimally dissipated. Therefore, an extremely high continuous power handling capacity of 1800W / 7200W (AES / peak) is possible. The lower heat development also means increased reliability and reduced thermal stress on the voice coil. Excellent dynamics and dry bass reproduction at incredible pressure is the result. The filtering is done by Harmonic Design DSP amplifiers. With active crossover of 24 dB/octave to max. 160 Hz, best possible transitions between LF and HF are achieved.

The enclosure is made of multiplex wood and provided with a shock and weather-resistant polyurethane coating. The front of the speaker is a stable front grille with
internal acoustic foam. Generously dimensioned transport handles are integrated into the side walls. On the back there are inlet threads for attaching hd SilentWheels, the acoustically decoupled 100 mm hd SilentWheels, as well as a recessed connection panel with two NL4 sockets for connection via pin 2+/2- and forwarding of the input signal. Operation is as a slave subwoofer on the active hd P18 system subwoofer or on all Harmonic Design system amplifiers to ensure reliable and accurate low-frequency reproduction. The loudspeaker enclosure is available on request in RAL colors, weatherproof or as an installation version without handles and without M20 thread.

Model hd Sub18
Principle bass reflex system
Transducers 1x 18“N long excursion chassis
5“ voice coil, vented at pole piece and spider
Crossover active up to max. 160 Hz
Power handling capacity (RMS/Peak) 1800W / 7200W
Frequency range 35 Hz – 160 Hz
Sensitivity (1 W / 1 m) 102 dB
Max. sound pressure (1 m) 141 dB
Nominal impedance 8 Ohms
Connection 2x Speakon NL4
Dimensions (W x H x D) 536 x 542 x 600 mm
Weight 40 kg
Enclosure 18 mm multiplex birch wood
baffle 36 mm multiplex birch wood
Polyurea plastic coating black
Steel grille coated
Acoustic foam
transport handles
prepared for 100 mm hd SilentWheels
M20 thread insert
Options Transport protection cover
wheelboard
hd SlientWheels Set
installation version
weather protection
RAL color

Accessories

Applications

  • mobile use
  • Live music, DJ, touring
  • public buildings, conference and media technology
