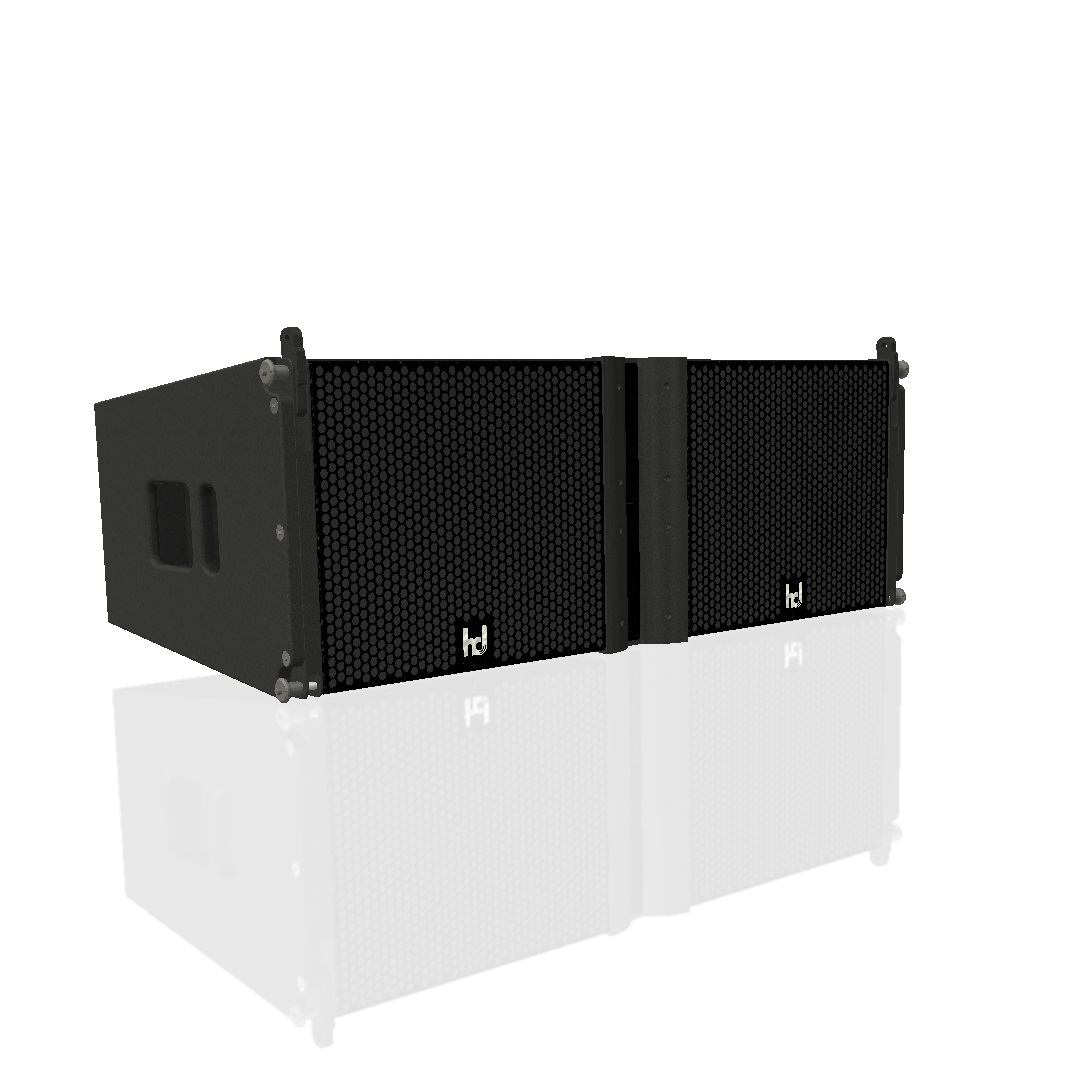

hd LSA24

The hd LSA24 is an efficient line array module of the latest generation, which is equipped with a specially developed high-performance 12″ neodymium woofer chassis. The HF segment consists of two 1.4″neodymium compression drivers with special polymer diaphragms coupled to wave formers to create a cylindrical wavefront. The brilliant speech intelligibility paired with dynamic tonality as well as the extreme spatial depiction and “depth” of effects is extraordinary and so far known only by much larger systems.

The built-in 3-point FastRig rigging allows you to adjust the vertical opening angle precisely in 1° increments from 0° to 11° for flown vertical arrays of up to 16 loudspeakers. All attachments and quick lock pins are firmly connected to the housing. The different horn attachments of the high-frequency section allow symmetrical and asymmetrical horizontal dispersion angles for permanently installed applications, in order to precisely align the loudspeaker system with the surface to be sounded and to block out disturbing reflections from walls or obstacles. The special SuperVentedDesign™ enables dynamic and broadband playback up to 42 Hz in full-range mode for applications without additional subwoofer systems. High-performance subwoofer of hd Sub-Series are available for high-performance applications and extended playback down to the infrasound range.

Operation takes place exclusively via Harmonic Design system amplifiers and guarantees outstanding performance and compatibility even under adverse conditions as well as maximum efficiency in terms of power consumption, pack size and output. For beginners in the LineArray era as well as advanced users, the hd LSA24P-TourSys2 is available as a perfectly coordinated complete LineArray system. Several TourSys systems can be expanded into one large system to create sound systems for up to 25,000 listeners.

An optional passive phase-optimized crossover allows the hd LSA24P to be operated quickly and easily on just one amplifier channel. The 2-way active mode enables the hd LSA24‘s unique neutrality and uncompromising high-end sound and is recommended for all maximum level requirements.
