hd Infra218
Hybrid Subwoofer
- 2x 18“ High-Performance Hybrid Subwoofer 3600 W / 14400 W (RMS/Peak)
- extended frequency response down to 28 Hz
- 149 dB SPLmax
- passive directivity for stacks of 3 units
- 2x M20 threads
- weight 89 kg

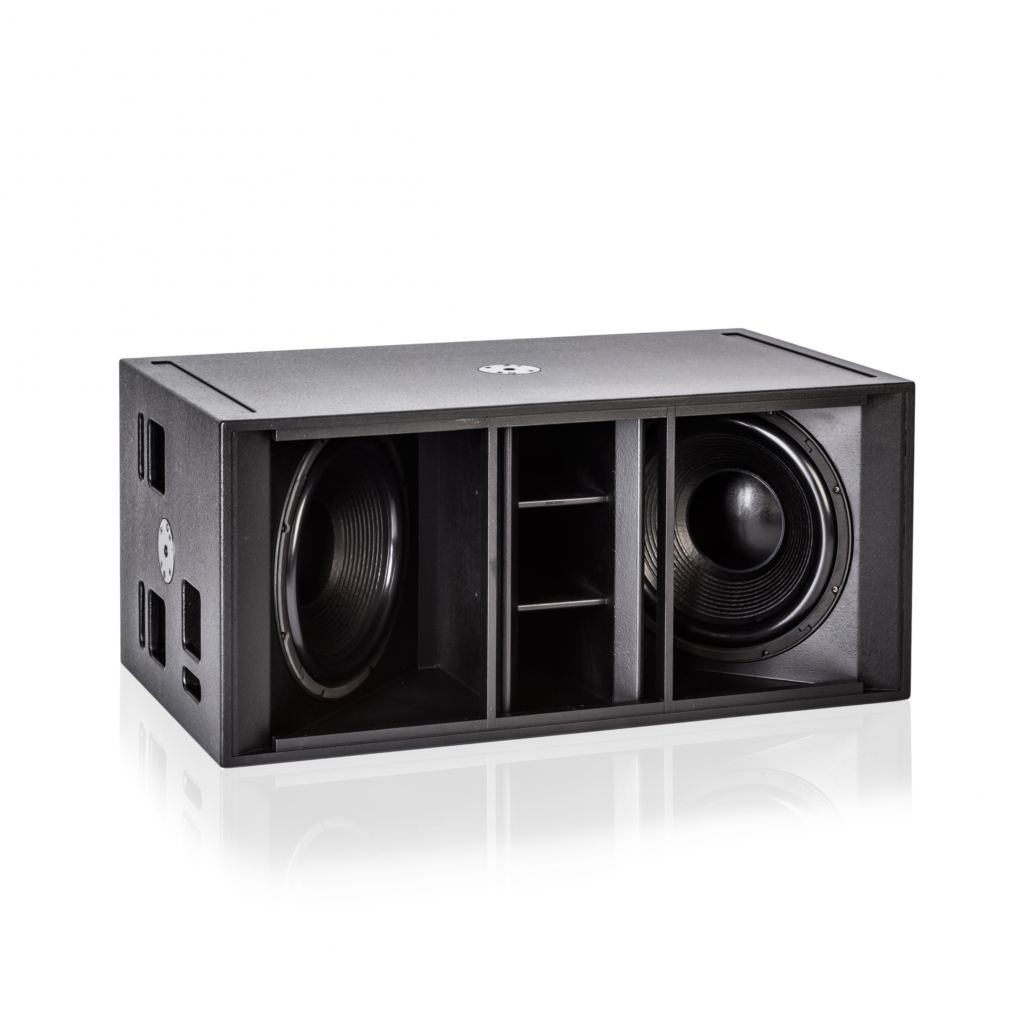

The hd Infra218 is a high-performance subwoofer for reproducing frequencies below 28 Hz. Compact dimensions and exceptional power reserves combined with minimal distortion make the hd Infra218 a modern and flexible tool for touring and installation applications requiring extreme low-frequency sound pressure and maximum control over dispersion. The optimally tuned, horn-shaped multiplex enclosure with bass reflex tuning accommodates two special 18″N high-performance chassis with a linear stroke of 30 mm and a load capacity of 14.4 kW. A large, flow-optimized center reflex port provides excellent air excitation with minimal turbulence and distortion. Thanks to its long throw range, high efficiency and passive directivity, the hd Infra218 can be optimally integrated into LineArray applications. Two M20 threads allow horizontal and vertical operation with distance rods. A Speakon turning socket in the protective grid allows cardioid configurations without an interchangeable cable.
Model | hd Infra218 |
---|---|
Principle | Bass reflex system/horn-loaded |
Transducers | 2x 18″ long excursion chassis 5“ voice coil, vented at pole piece and spider |
Crossover | active up to max. 120 Hz |
Power handling capacity (RMS/Peak) | 3600 W / 14400 W |
Frequency range | 28 Hz – 120 Hz |
Sensitivity (1 W / 1 m) Groundplane |
106 dB |
Max. sound pressure (1 m) Groundplane, 10% THD |
149 dB |
Nominal impedance | 4 Ohms |
Connection | 2x Speakon NL4 1x Speakon NL4 turning socket |
Dimensions (W x H x D) | 1190 x 536 x 670 mm |
Weight | 89 kg |
Enclosure | robust multiplex housing Polyurethane coating black recessed connection panel with 2x NL4 rear turning socket NL4 front 2x M20 threads 6x transport handles Steel grille with acoustic foam inside |
Options | Transport Protection Cover hd SlientWheels Set weather protection RAL color |
Accessories
Applications
- live music, DJ, touring
- Public buildings
