hd Beam-Series

Beamforming Technology

  • 2In/32Out High-End hd BeamDSP
  • redundant input section with fallback algorithm
  • analog & digital inputs with Dante®
  • AdvancedDirectivityOptimization Algorithmus
  • 384 Taps FIR filter per input/output
  • 16x IIR filter (double precision) per input/output
  • modular equipping in segments of 8
  • 75W Class-D amplifiers with digital input for best SNR
  • ImpedanceControl with fault detection
  • multistage Limiter-Architecture
  • hd LevelZ Remote control software via USB
  • standard colors: black RAL 9005 & white RAL 9010

Harmonic Design® beamforming loudspeakers offer great potential for improving sound distribution in complex architectures and highly reverberant rooms. The goal is to focus the sound only on the listener’s surfaces, while shading areas that create unwanted reflections and disturbing room resonances. This leads to a much better speech intelligibility and a first-class listening experience for speech and music performances down to the last rows. Furthermore, the Beamforming technology, which offers a wider range of functions than just Beam Steering, enables unobtrusive positioning of the speakers even in less ideal locations for flexible adaptation to the most diverse requirements.

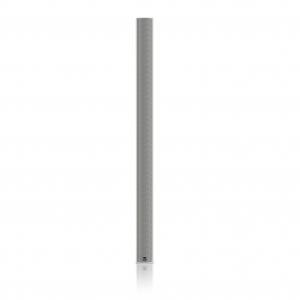

hd ML8Beam

hd ML8Beam
  • 8x 2”
  • hd Beamforming
  • 8x 75W, 1 Beam
  • SPLmax 119 dB
  • Weight 9 kg

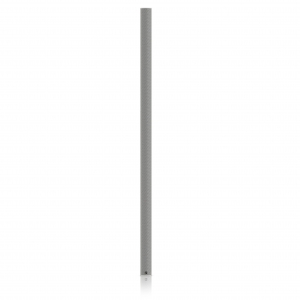

hd ML16Beam

hd ML16
  • 16x 2”
  • hd Beamforming
  • 16x 75W, max. 2 Beams
  • SPLmax 123 dB
  • Weight 11 kg

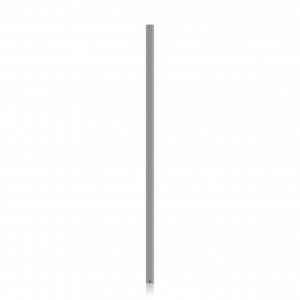

hd ML24Beam

hd ML24
  • 24x 2 “
  • hd Beamforming
  • 24x 75W, max. 3 Beams
  • SPLmax 125 dB
  • Weight 13 kg

hd ML32Beam

hd ML32
  • 32x 2”
  • hd Beamforming
  • 32x 75W, max. 4 Beams
  • SPLmax 127 dB
  • Weight 15 kg

hd PL8Beam

hd PL8Beam
  • 8x 3”
  • hd Beamforming
  • 8x 75W, 1 Beam
  • SPLmax 123 dB
  • Weight 10 kg

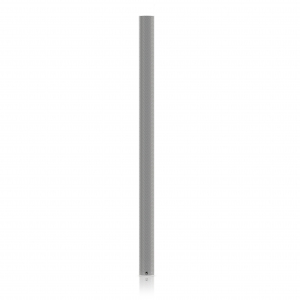

hd PL16Beam

hd PL16
  • 16x 3”
  • hd Beamforming
  • 16x 75W, max. 2 Beams
  • SPLmax 126 dB
  • Weight 14 kg

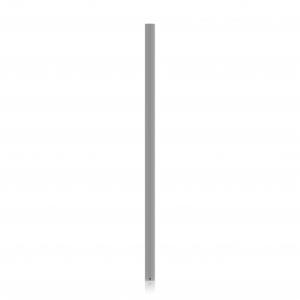

hd PL24Beam

hd PL24Beam
  • 24x 3”

  • hd Beamforming
  • 24x 75W, max. 3 Beams
  • SPLmax 127 dB
  • Weight 18 kg

hd PL32Beam

hd PL32Beam
  • 32x 3”
  • hd Beamforming
  • 32x 75W, max. 4 Beams
  • SPLmax 129 dB
  • Weight 22 kg
