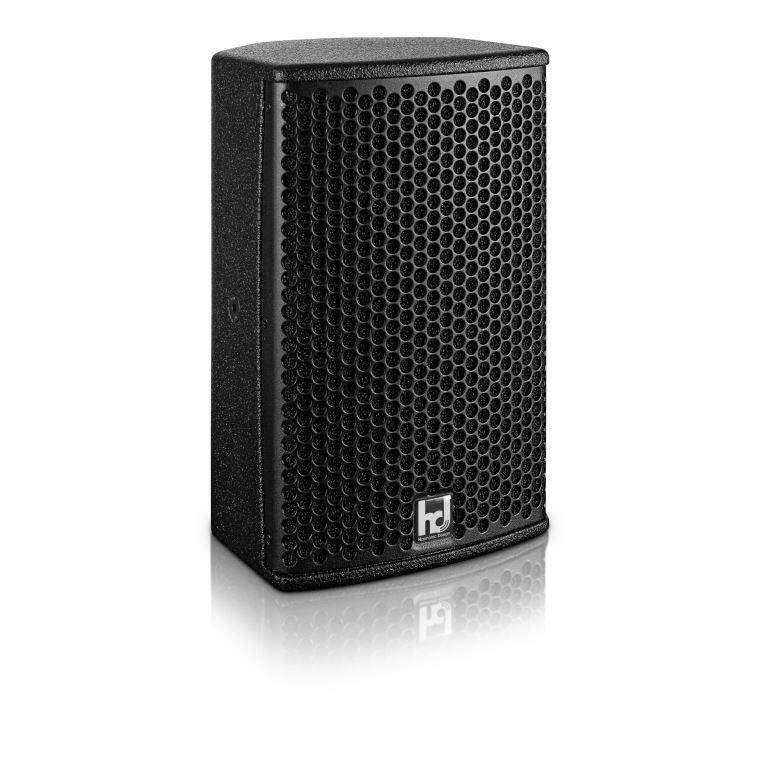

hd 6CXN

Nearfield Loudspeaker

  • passive 2-way coaxial loudspeaker with 1x 6”N / 1x 1”N
  • operation with any amplifier
  • precise & even sound radiation
  • clear mid-range & brilliant highs
  • slim and elegant design
  • integrated frequency and phase optimization
  • fullrange without DSP

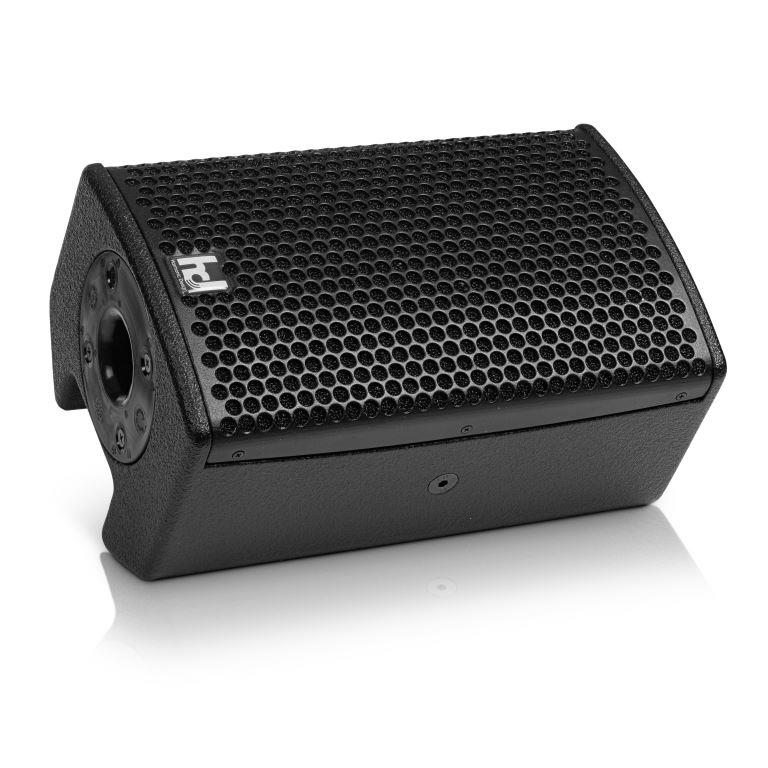

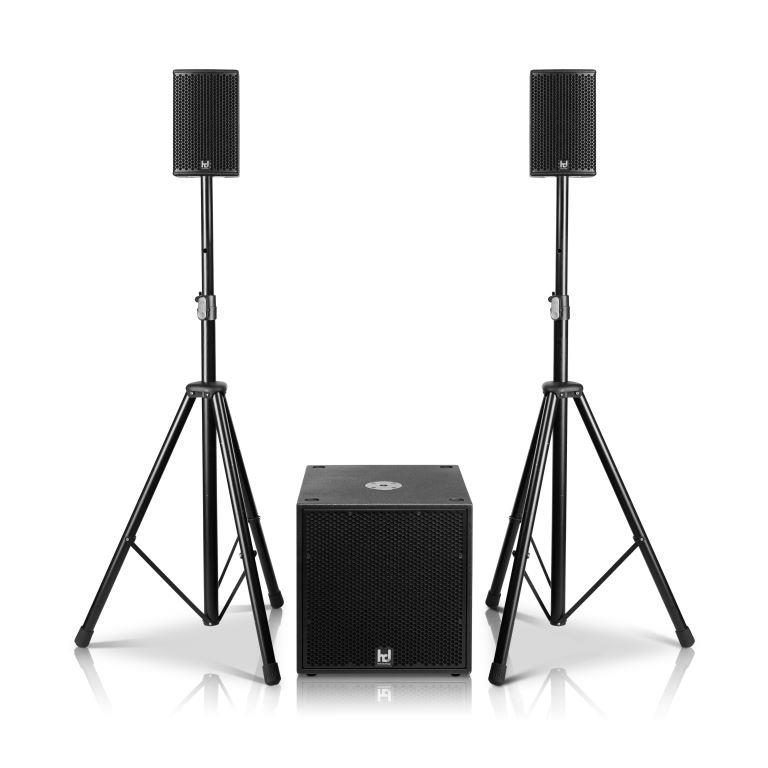

The hd 6CXN is a passive 2-way system equipped with a 6″ neodymium low/mid woofer and a 1″ neodymium high-frequency driver. Operation is possible via any power amplifier – even without DSP – and makes the hd 6CXN the optimal solution for high-quality mobile or permanently installed public address applications in, for example, industrial events, theaters or sports facilities. The conical horn provides a natural sound without the horn-typical sound coloration, a long range and optimal speech intelligibility. The frequency- and phase-optimized crossover guarantees a linear transmission behavior. An integrated 35 mm flange allows use on a tripod or with two monitor angles with 35° and 45° as a stage monitor.

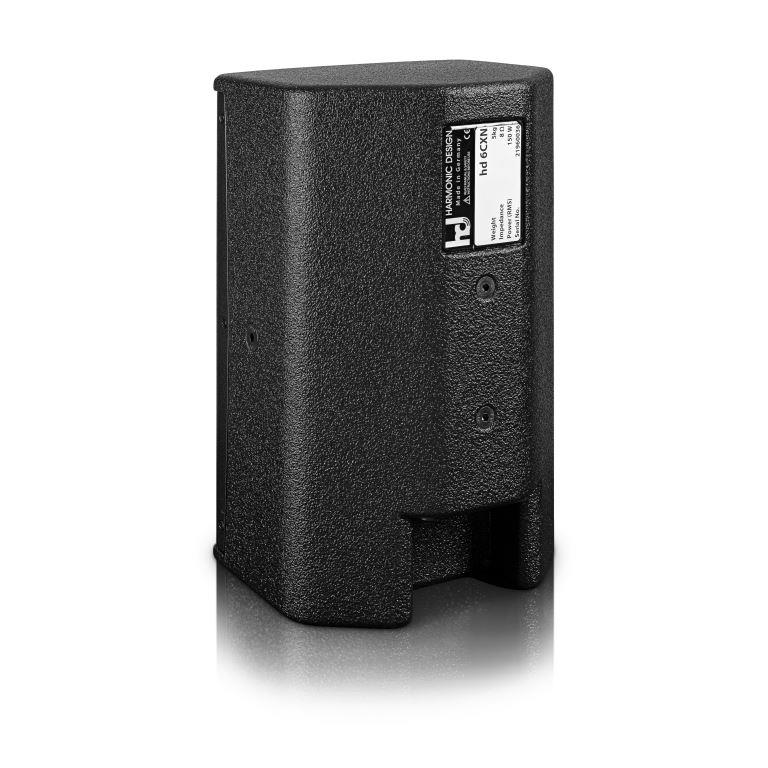

The housing is made of multiplex wood and provided with a shock and weather-resistant polyurethane coating, and a ballproof, elegant and rounded steel grille in black. For permanent installation, two M6 and M8 inlet threads are available for the cost-effective installation of standardized wall mounts or brackets. The NL4 Speakon jacks, which are mounted on the back of the connection panel, are used to connect and forward the input signal. The speaker cabinet is available in the RAL colors and outdoor options.

Model hd 6CXN
Principle vented / conical horn
Transducers 1x 6″N LF
1x 1″N HF
Crossover 1400 Hz, 2-way passive
Power handling capacity (RMS/Peak) 150 W / 600 W
Frequency range 80 Hz – 20 kHz
Sensitivity (1 W / 1 m) 94 dB
SPLmax 119 dB
Nominal dispersion angle horizontal 90° x vertical 90°
Nominal impedance 8 Ohms
Connection 2x Speakon NL4
Dimensions (W x H x D) 180 x 290 x 174 mm
Weight 4.5 kg
Enclosure 15 mm multiplex birch wood
polyurea plastic coating black
steel grille coated
Acoustic foam
35mm flange
M8 inlet thread for flight & swivel bracket
35°/45° monitor angle
Options Transport Protection Cover
wall mount
double case
mounting adapter

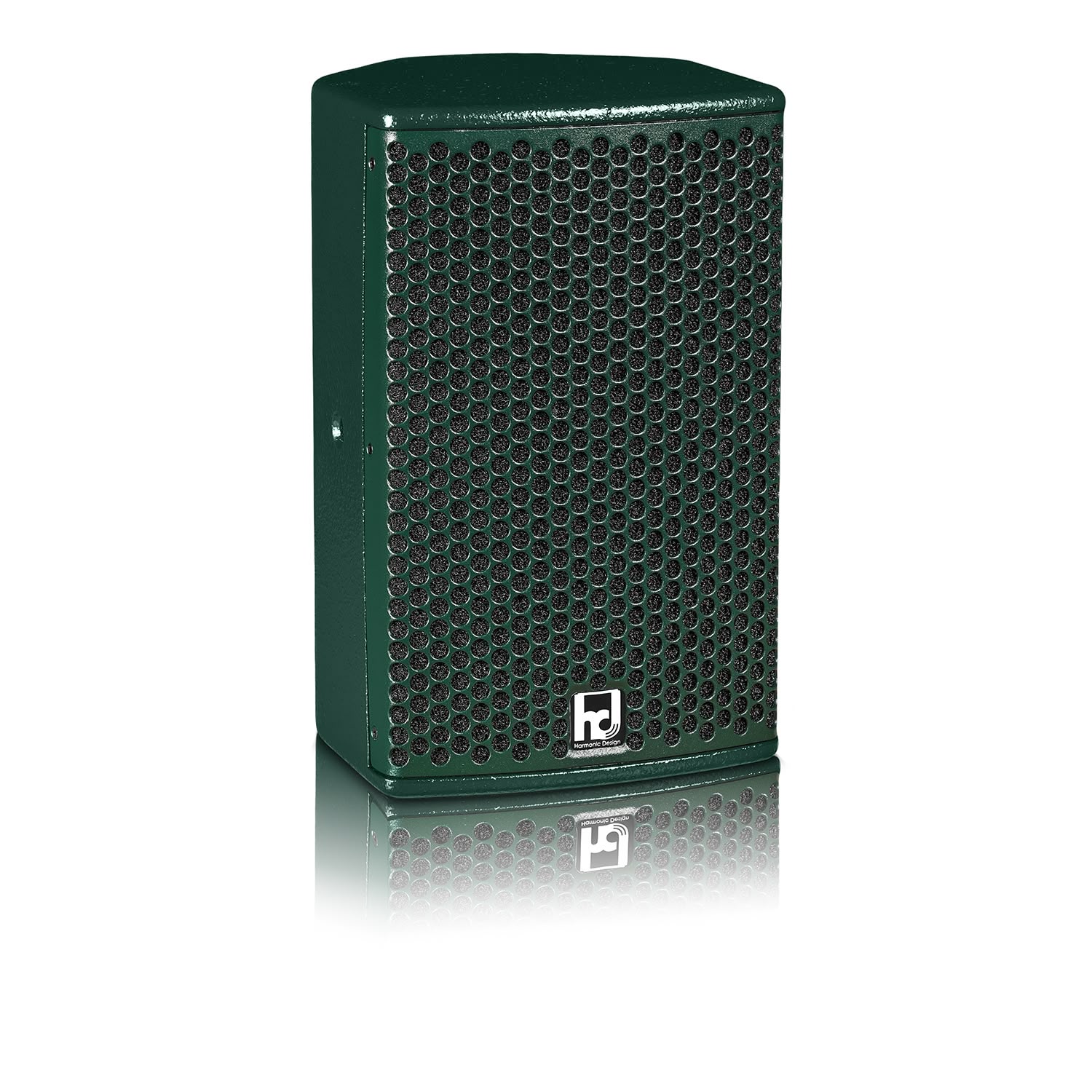

RAL color
weather protection



  • live music, DJ, touring
  • Public buildings
